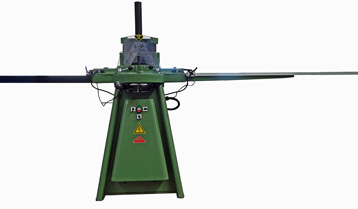

Morso Model E Future Green
Morso Model E Future Green is a fully automatic, electric mitring machine with a two-hand release built on. This makes the machine absolutely safe to operate as it is impossible to start the machine and touch the knives at the same time.
With Morso-E Future Green you achieve the clean smooth cut by automatically cutting of the work piece in two cuts, as long as both push buttons are activated at the same time. The cutting time varies from 1 second and up, depending on the thickness of the work piece. Having finished the cutting, the knife block automatically returns to the starting position.
The starting position (horizontal movement) is adjustable up to 60 mm, (Max. width of work piece is 100 mm.) and from 60 mm the Morso-E Future Green will automatically cut the work piece bit by bit. The variable start position is adjusted by a handle placed on the machine.
The vertical movement of the knife block is also adjustable with three different heights.
Position 1 for small work pieces,
Position 2 for medium size work pieces and
Position 3 for very thick work pieces, up to 180 mm.
Morso-E Future Green is delivered with:
-Two hand release operation,
-safety guard,
-sliding longi-tudinal stop,
-second stop,
-measuring scale up to 1500 mm,
-waste chute,
-extension table for the left side,
-adjustable fences,
-adjustable and automatic rebate supports,
-and clamping cylinders.
